Automatic Solar PV Roll Forming Machine with Servo PLC Control

Brand Name:	THRONCH
MOQ:	1 SET
Price:	USD 10000-100000 PER SET
Delivery Time:	Depends on the items and the quantity of your order.
Payment Terms:	TT / LC,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE.ISO

Material Compatibility:

Steel, Aluminum, Copper, Etc.

Control System:

Servo Motor And PLC

Horizontal Deviation:

+- 0.5 Mm

Longitudinal Deviation Of Hole:

+- 0.5 Mm

Warranty:

1 Years

Power Supply:

220V, 380 V

Punching Speed:

300 Punches Per Minute

Operation Mode:

Automatic

Use:

It Is Used In Conjunction With The Forming Machine

Key Selling Points:

Long Service Life

Packaging Details:

Main body of High Speed Metal Stud and Track Roll Forming Machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in 1x40GP container suitable for long-distance transportation, spare parts are

Supply Ability:

10 SET / MONTH

Highlight:

solar PV roll forming machine with PLC control

automatic roll forming machine with servo

PLC controlled solar panel forming machine

Product Description

Solar PV Structure Mounting Roll Forming Machine

Product Specifications

Attribute	Value
Material Compatibility	Steel, Aluminum, Copper, Etc.
Control System	Servo Motor And PLC
Horizontal deviation	± 0.5 Mm
Longitudinal deviation of hole	± 0.5 Mm
Warranty	1 years
Power Supply	220V, 380 V
Punching Speed	300 Punches Per Minute
Operation Mode	Automatic
Use	Used in conjunction with the forming machine
Key Selling Points	Long Service Life

Key Features

Produces different purlin sizes without changing rollers or spacers
No need to change cutter for different sizes
Easy operation with low maintenance cost
Infinite sizing capability (any size within machine range) helps save material
Optional punch hole at any position of purlin web side and flange side

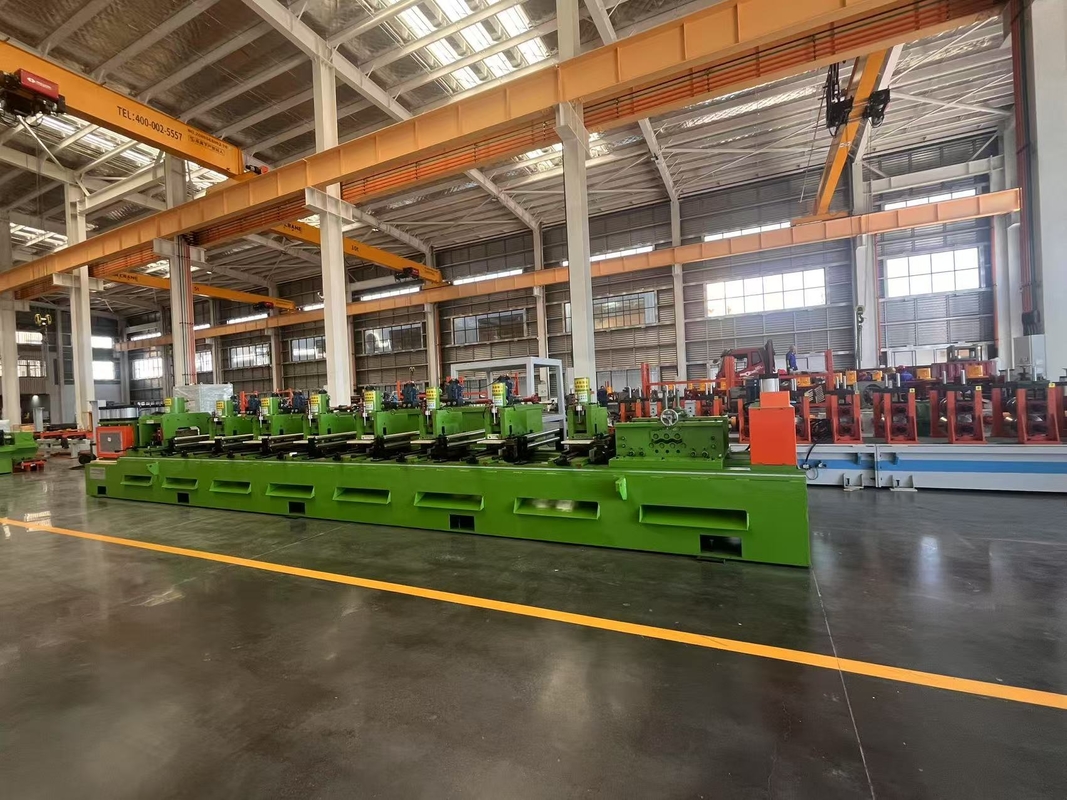

Production Display

Technical Parameters

Suitable material	Carbon steel, Color steel sheet, galvanized steel sheet
Main motor power	37 or 55 KW with Cycloidal reducer
Hydraulic station power	55kw, 37 kw
Hydraulic oil	40#
Thickness	1.0mm~8.0 mm
Diameter	Φ70mm, Φ80mm, Φ90mm ...
Electric tension	220V/380V 3phase 50HZ
Material of roller	Cr12Mov(SD11)
Rolling galvanization thickness	0.05mm
Processing speed	10-40 m/min
Processing precision within	10m+/-1.00mm
Material of cutting blade	Cr12MoV quenched

Applications

Production Process

Packing and Shipping

Frequently Asked Questions

Q1. What are the main key points for selecting right machines?

A1: Whole structure, Roller Shaft, Roller Material, Motor & Pump, and Control system. As the new buyer, please kindly know that price not the final point. Good quality is for long-term business cooperation.

Q2. Can you provide OEM service for roll forming machine?

A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material, size, production usage, machine speed, then machine specification will be some different.

Q3. What's your standard trade terms?

A3: We can provide the technical offer with FOB, CFR, CIF, Door to Door and so on. Please kindly tell the detailed port name for competitive ocean freight.

Q4. How about the quality control?

A4: Our company adopts 6S system to control every part with passed ISO9001:2000, CE, TUV/BV Certificate.

Q5. How about the after-sale service?

A5: We provide 12 months free warranty and free technical support for the whole life of any machine. During warranty period, if parts still broken, we can send the new ones freely.
