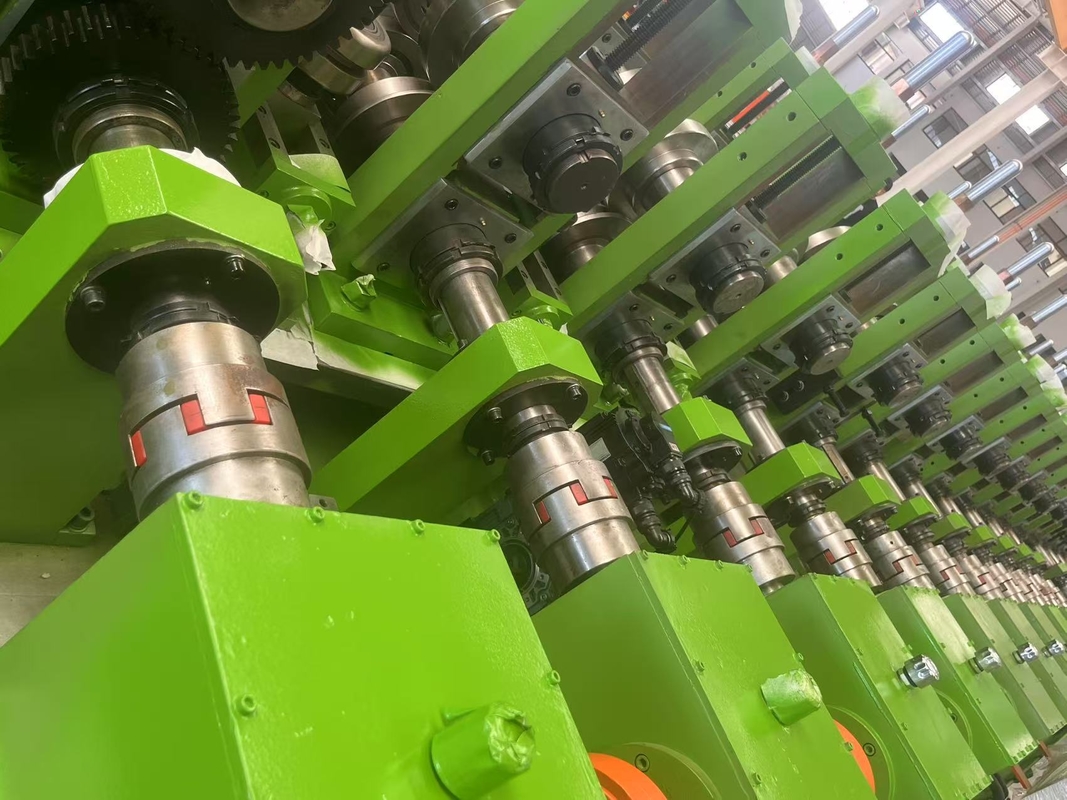

Automatic Roll Forming Machine for Solar PV Systems 300 Punches/Min
Product Summary
Customizable Cold Roll Forming Machine for Solar PV Systems – Energy-Saving & Stable Performance Product Specifications Attribute Value Material Compatibility Steel, Aluminum, Copper, Etc. Control System Servo Motor And PLC Horizontal deviation ± 0.5 mm Longitudinal deviation of hole ± 0.5 mm ...
Product Custom Attributes
Material Compatibility:
Steel, Aluminum, Copper, Etc.
Control System:
Servo Motor And PLC
Horizontal Deviation:
+- 0.5 Mm
Longitudinal Deviation Of Hole:
+- 0.5 Mm
Warranty:
1 Years
Power Supply:
220V, 380 V
Punching Speed:
300 Punches Per Minute
Operation Mode:
Automatic
Use:
It Is Used In Conjunction With The Forming Machine
Key Selling Points:
Long Service Life
Highlight:
solar PV roll forming machine
,automatic roll forming machine 300 punches
,roll forming machine for solar panels
Basic Properties
Place of Origin:
China
Brand Name:
THRONCH
Certification:
CE.ISO
Trading Properties
Minimum Order Quantity:
1 SET
Price:
USD 100000-200000 PER SET
Packaging Details:
Main body of High Speed Metal Stud and Track Roll Forming Machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in 1x40GP container suitable for long-distance transportation, spare parts are
Delivery Time:
Depends on the items and the quantity of your order.
Payment Terms:
TT / LC,Western Union,MoneyGram
Supply Ability:
10 SET / MONTH
Product Description
Customizable Cold Roll Forming Machine for Solar PV Systems – Energy-Saving & Stable Performance
Product Specifications
| Attribute | Value |
|---|---|
| Material Compatibility | Steel, Aluminum, Copper, Etc. |
| Control System | Servo Motor And PLC |
| Horizontal deviation | ± 0.5 mm |
| Longitudinal deviation of hole | ± 0.5 mm |
| Warranty | 1 year |
| Power Supply | 220V, 380V |
| Punching Speed | 300 Punches Per Minute |
| Operation Mode | Automatic |
| Use | Used in conjunction with the forming machine |
| Key Selling Points | Long Service Life |
Product Features
- Produces different purlin sizes without changing rollers or spacers
- No need to change cutter for different sizes
- Easy operation with low maintenance cost
- Infinite sizing capability within machine range helps save material
- Optional punch hole at any position of purlin web side and flange side
Production Display
Technical Parameters
| Suitable material | Carbon steel, Color steel sheet, galvanized steel sheet |
| Main motor power | 37 or 55 kW with Cycloidal reducer |
| Hydraulic station power | 55kW, 37 kW |
| Hydraulic oil | 40# |
| Thickness | 1.0mm~8.0 mm |
| Diameter | Φ70mm, Φ80mm, Φ90mm... |
| Electric tension | 220V/380V 3phase 50HZ |
| Material of roller | Cr12MoV (Equivalent to SKD11, STD11, D2) |
| Rolling galvanization thickness | 1-3 mm |
| Processing speed | 10-40 m/min |
| Processing precision within | 10m±1.00mm |
| Material of cutting blade | Cr12MoV quenched |
Applications
Production Process
Packing and Shipping
Frequently Asked Questions
Q1. What are the main key points for selecting right machines?
A1: Whole structure, Roller Shaft, Roller Material, Motor & Pump, and Control system. As the new buyer, please kindly know that price is not the final point. Good quality is for long-term business cooperation.
Q2. Can you provide OEM service for roll forming machine?
A2: Yes, most of cold roll forming machines need to be customized as per detailed request, because raw material, size, production usage, machine speed, and machine specification will be different.
Q3. What's your standard trade terms?
A3: We can provide the technical offer with FOB, CFR, CIF, Door to Door and so on. Please kindly tell the detailed port name for competitive ocean freight.
Q4. How about the quality control?
A4: Our company adopts 6S system to control every part with passed ISO9001:2000, CE, TUV/BV Certificate.
Q5. How about the after-sale service?
A5: We provide 12 months free warranty and free technical support for the whole life of any machine. During warranty period, if parts still broken, we can send the new ones freely.
