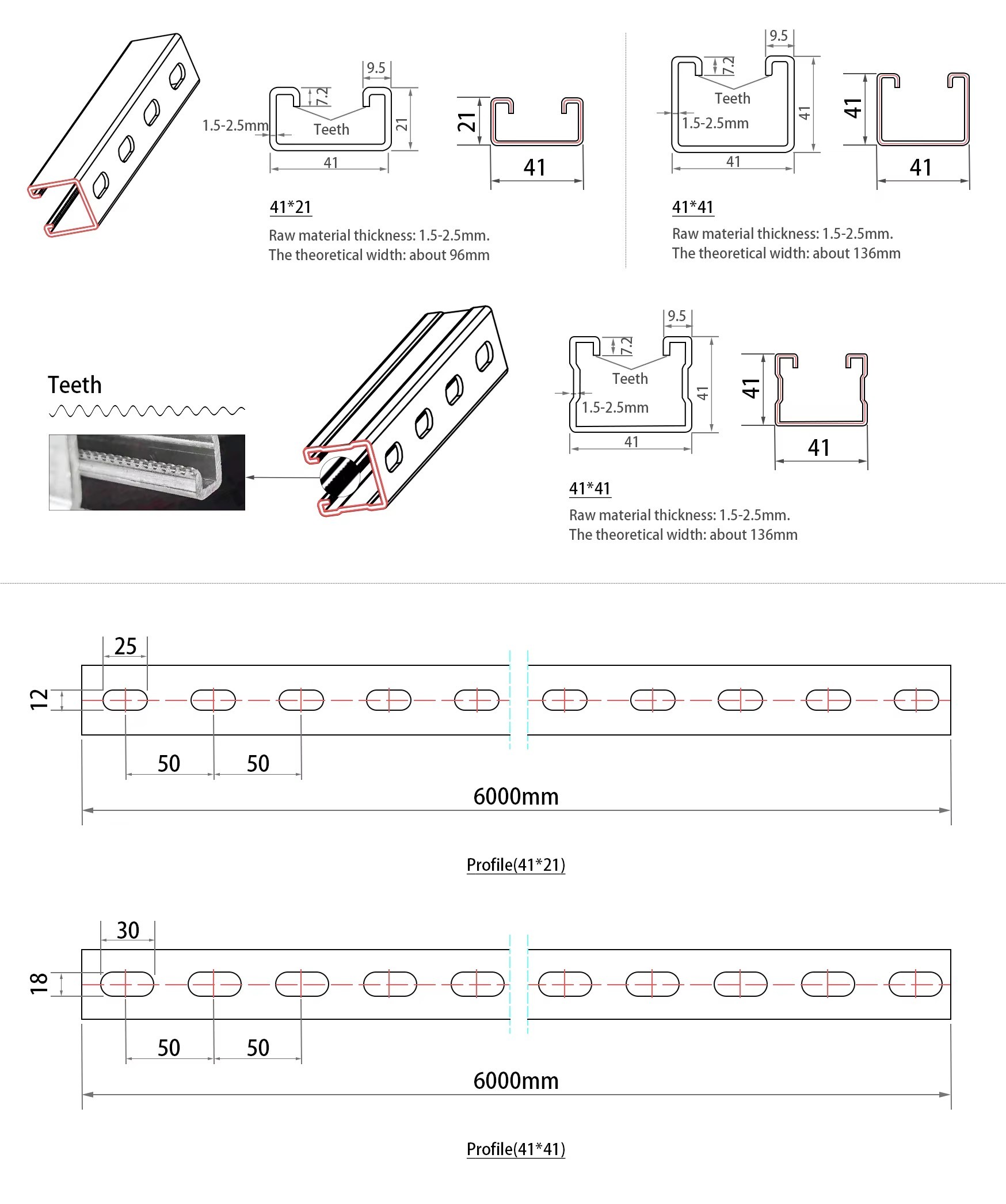

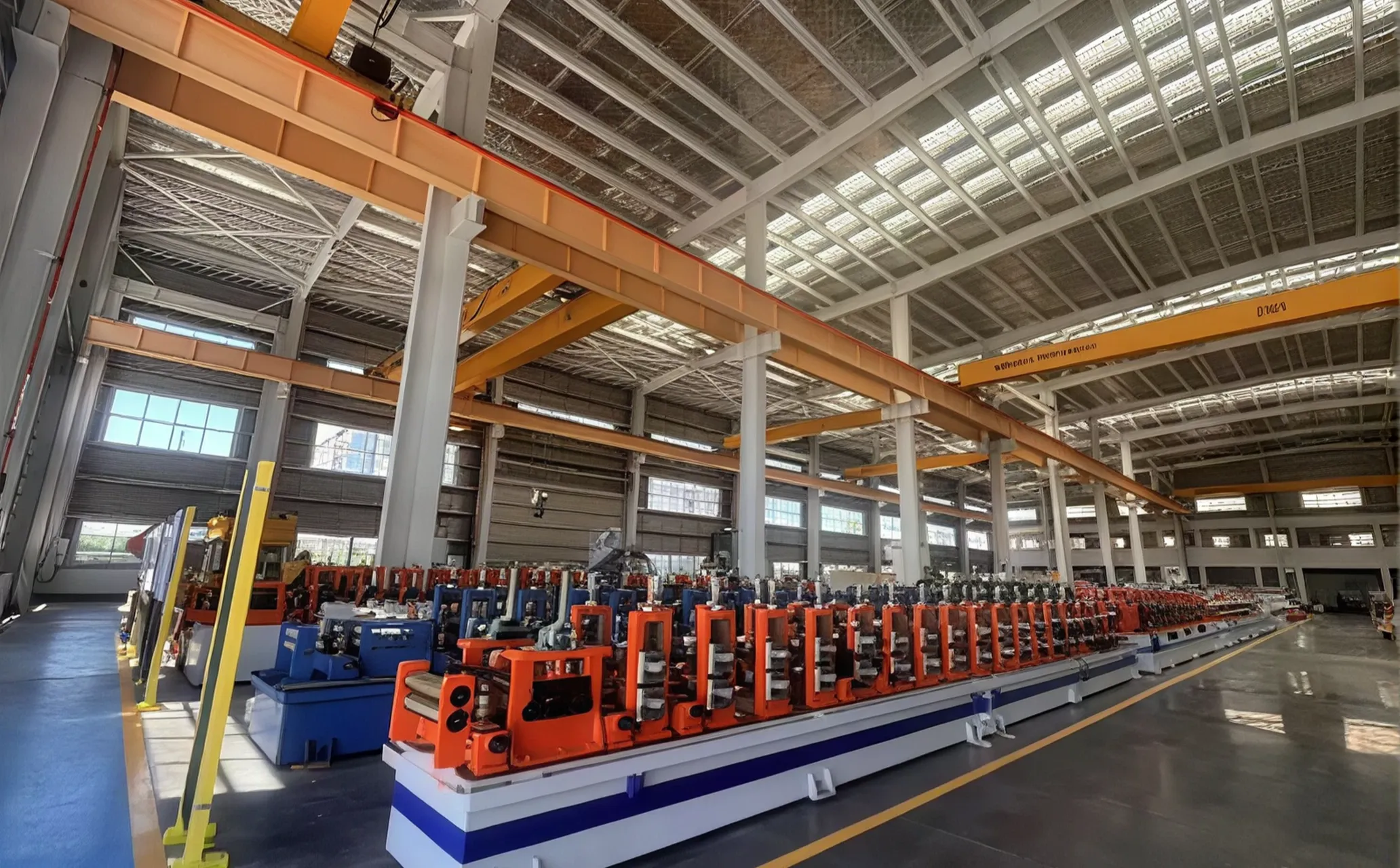

Example Workflow for Forming a Channel Profile
Uncoil a steel strip and feed it into the machine.
Rollers 1–3 bend the edges upward gradually.
Rollers 4–6 refine the bends to form a uniform “U” shape.

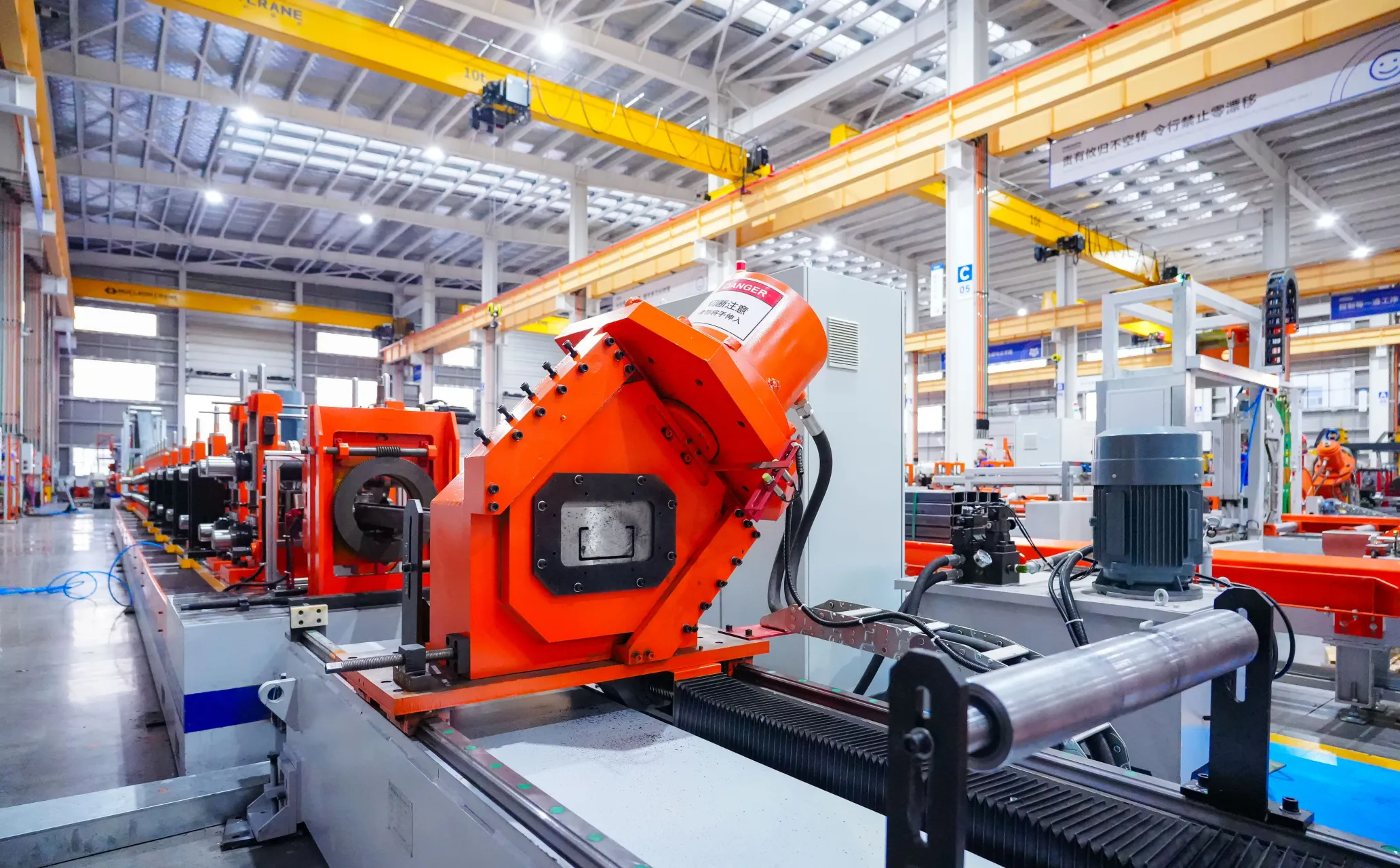

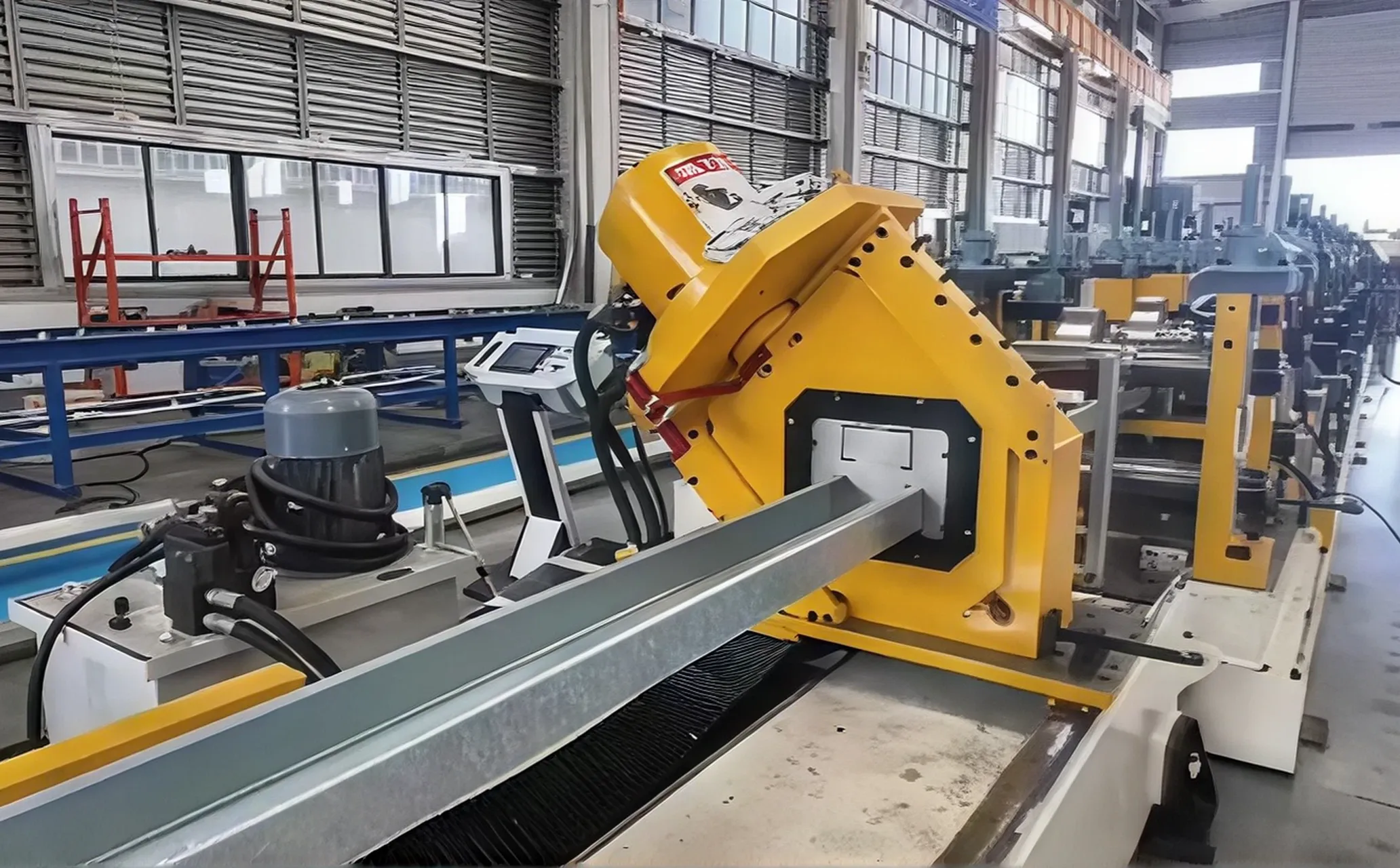

The flying shear cuts the channel to 10-foot lengths.
Finished channels are stacked for inspection and shipment.
By following these steps and maintaining proper setup, a roll forming machine can efficiently produce high-quality, consistent profiles for various industries.
Always refer to the manufacturer’s manual for machine-specific operations and safety guidelines.

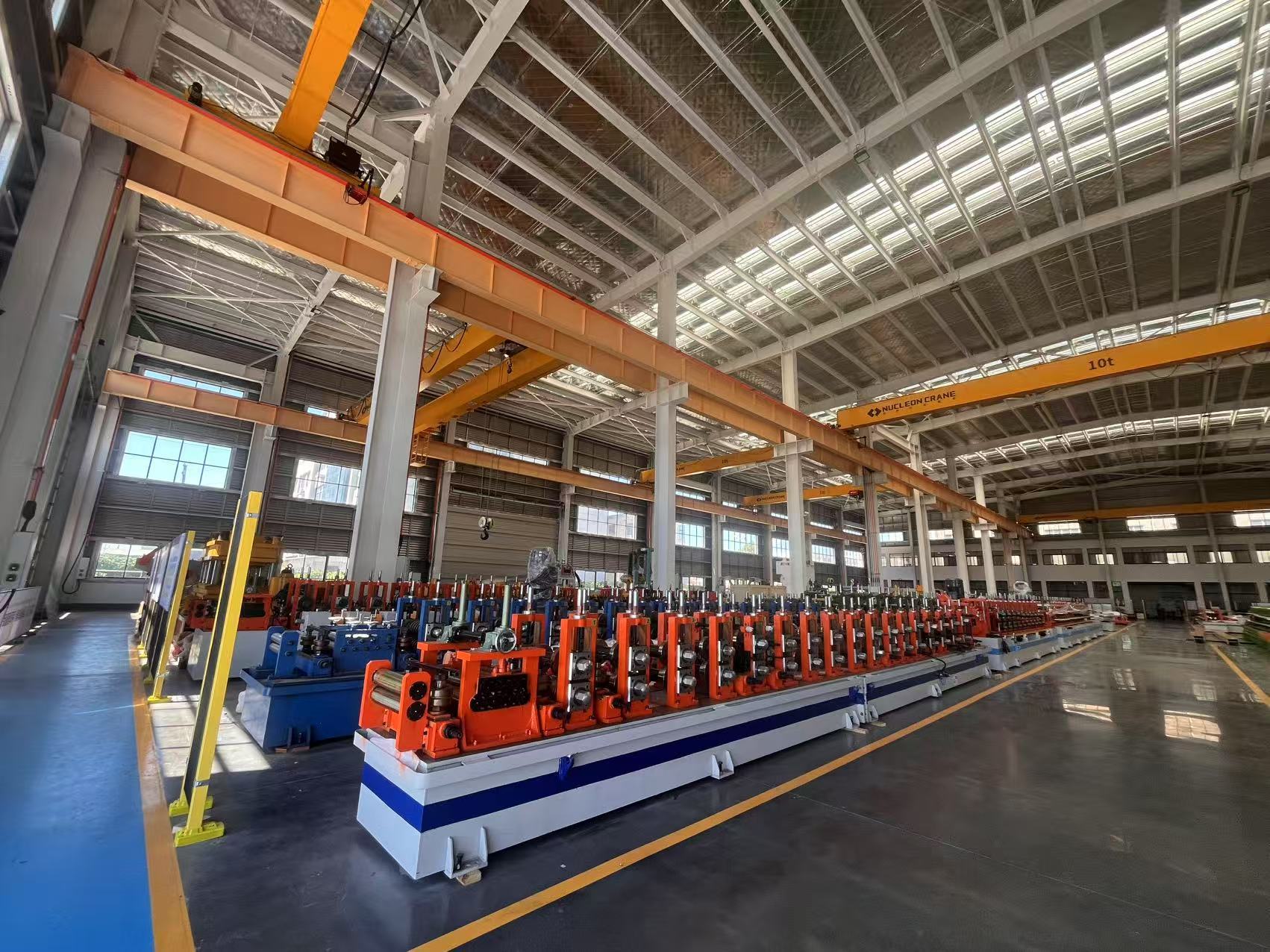

Using a roll forming machine involves a series of sequential steps, from preparation and setup to actual operation and shutdown, all while prioritizing safety. Here's a detailed guide on how you use a roll forming machine:
I. Pre-Operation Checks & Setup (Preparation is Key)
Before even turning on the machine, thorough preparation is crucial for safety, efficiency, and product quality.
Read the Manual: This is non-negotiable. Every roll forming machine model has specific instructions, safety warnings, and maintenance schedules. Familiarize yourself with your machine's manual.
Inspect the Machine:
Visual Check: Look for any loose bolts, damaged components, abnormal wear on rollers, signs of leaks (hydraulic fluid, coolant), or debris.
Guarding: Ensure all safety guards, covers, and emergency stop buttons are in place, functioning correctly, and not bypassed.
Lubrication: Verify that all moving parts (bearings, gears, chains) are adequately lubricated according to the manufacturer's recommendations. Check oil and coolant levels if applicable.
Tooling Inspection: Confirm the roller dies are clean, free of damage, and correctly installed for the specific profile you intend to form. Check the gaps and alignment of the rollers.
Prepare the Material:
Material Specification: Confirm the metal coil or strip matches the machine's specifications and the job requirements (material type, thickness, width, temper).
Coil Loading: Safely load the coil onto the decoiler/uncoiler. Ensure it's centered and secured properly. If it's a heavy coil, use appropriate lifting equipment and ensure no one is under the coil during loading.
Strip Straightening: If the machine has a leveller/flattener, ensure it's adjusted to remove any coil set or material imperfections.
Set Up the Control System (PLC/CNC):
Program Entry: Enter the required parameters into the machine's control panel (HMI). This typically includes:
Desired profile length.
Batch quantity.
Machine speed.
Settings for in-line punching, notching, or cutting operations (if applicable).
Tooling Adjustment: While often pre-set by engineers, ensure the roll gaps for each station are correctly adjusted for the material thickness. This is critical for achieving the correct profile and preventing material marking or wrinkling. A feeler gauge is often used for this.
II. Operation (Starting Production)
Once preparations are complete, you can begin the forming process.
Power On: Turn on the main power supply to the machine.
Activate Hydraulic/Pneumatic Systems: If the machine has hydraulic or pneumatic components (e.g., for the cut-off press), activate their respective pumps or air supply. Check pressure levels.
Initial Material Feed (Threading):
Manually feed the leading edge of the metal strip into the entry guides and then into the first set of rollers.
Carefully guide the strip through the initial forming stations. This step often requires slow machine speed and careful observation to ensure the material tracks correctly through the rollers.
Ensure the strip is centered and runs smoothly. An improperly aligned entry guide can lead to issues like twist, camber, or burrs.
Trial Run & Adjustment:
Run a short length of material through the entire machine (a "test piece").
Inspect the Formed Profile: Carefully examine the test piece for:
Dimensional accuracy (measure the profile's dimensions against specifications).
Profile consistency (check for ripples, wrinkles, twisting, bowing, or end flare).
Surface finish (look for scratches or marks from the rollers).
Hole/Cutout accuracy (if in-line operations are used).
Make Adjustments: If any issues are found, stop the machine immediately. Adjust the relevant rollers, guides, or control parameters as needed. This often involves fine-tuning the roll gaps, side guides, or straightening units. Repeat trial runs until the product meets specifications.
Full Production Run:
Once the test pieces are perfect, switch the machine to automatic mode.
Monitor the production continuously. Listen for abnormal noises, watch for material slippage, and regularly inspect finished parts for quality and consistency.
Ensure the cut-off unit is functioning correctly and cutting to the programmed lengths.
Manage the output: Ensure formed parts are properly collected, stacked, or transferred to the next process without damage.
III. Shutdown & Maintenance (Ensuring Longevity)
Proper shutdown and routine maintenance are vital for the machine's longevity and performance.
End of Production:
Stop the material feed.
Allow the remaining material in the machine to fully process and exit.
Turn off the drive system and any integrated secondary operations.
Cleaning:
Clean the machine thoroughly, especially the rollers, guides, and cutting unit, to remove metal chips, dust, and debris. An air hose can be useful.
Wipe down all surfaces.
Lubrication: Re-lubricate any components as per the maintenance schedule.
Inspection: Perform a post-operation inspection for any new signs of wear, damage, or loosened parts that may have occurred during the production run.
Power Off: Turn off all hydraulic/pneumatic systems, then turn off the main power supply.
Scheduled Maintenance: Adhere to the manufacturer's recommended daily, weekly, monthly, and annual maintenance schedules. This includes checking belt tensions, inspecting electrical connections, and replenishing fluids.
Safety is Paramount (Especially in Japan's Strict Regulations):
Personal Protective Equipment (PPE): Always wear appropriate PPE, including safety glasses, hearing protection, gloves (non-snagging types), and safety shoes. Avoid loose clothing or jewelry that can get caught in moving parts.
Machine Guarding: Never remove or bypass safety guards. They are there to protect you from pinch points, rotating parts, and flying debris.
Emergency Stops: Know the location and function of all emergency stop buttons.
Lockout/Tagout (LOTO): Always follow LOTO procedures when performing maintenance, adjustments, or clearing jams. Ensure power is completely disconnected and locked out before working on the machine.
Awareness: Stay focused and aware of your surroundings. Do not operate the machine if you are fatigued or distracted.
Team Operation: For large machines, it's often advisable to have more than one person present during operation, especially when loading or troubleshooting.
Training: Ensure all operators are properly trained and authorized to use the machine.
By following these steps and prioritizing safety, you can effectively use a roll forming machine to produce high-quality metal profiles efficiently.
