3.2mm Building Material C Purlin Machine Steel Roll Forming Machine ISO9001

Brand Name:	THRONCH
MOQ:	1 SET
Price:	USD 10000-100000 PER SET
Delivery Time:	Depends on the items and the quantity of your order.
Payment Terms:	TT / LC

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE.ISO

Cutting:

Precise

Application:

Servo / Feeding

Control System:

PLC

Core Components:

PLC, Engine, Bearing, Motor

Decoiling Speed Control:

Manual Or Automatic

Orign:

China

Decoiling Direction:

Left Or Right

Thickness Of Material:

Max 3.2mm

Use:

It Is Used In Conjunction With The Forming Machine

Key Selling Points:

Long Service Life

Warranty:

2 Years

Packaging Details:

Main body of High Speed Metal Stud and Track Roll Forming Machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in 1x40GP container suitable for long-distance transportation, spare parts are

Supply Ability:

20 SETS/ MONTH

Highlight:

3.2mm C Purlin Machine

Building Material C Purlin Machine

steel roll forming machine ISO9001

Product Description

High Standard Purlin C & Z Channel Steel Roll Forming Machine for Building Material

PRODUCT DESCRIPTION

Features & Purposes:
C-type steel machine strengthens its firmness with an arch type, stabilizes its operation
with gearbox drive, and improves product quality by adopting molding shearing to avoid
port deformations.Products are widely applied in purline set-up of steel-structure houses.

Specification:

item	value
Type	Steel Frame & Purlin Machine
Applicable Industries	Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works
Showroom Location	None
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Warranty of core components	2 years
Core Components	PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Condition	New
Production Capacity	30m/min
Voltage	480V 60Hz 3P
Power	22Kw
Dimension(LWH)	10200x1350x1750mm
Weight	10000kg
Warranty	2 years
Key Selling Points	Automatic
Product name	Automatic C&Z purlin roll forming machine
After-sales Service Provided	Online Support
Usage	Steel Construction
Raw material	PPGI,PPGL G550
Material of rollers	G-Cr15 roller of purlin machine
Roller stations	18 rows
Diameter of shafts	75mm solid
Control system	PLC
Transmission way	By 1.5 inch chain
Certification	CE ISO

Working flow:

3.2mm Building Material C Purlin Machine Steel Roll Forming Machine ISO9001 0

Technical parameters:

Voltage	380V/50HZ/3PH
Motor Power	15KW
Forming Steps	13steps+3steps for reshaping
Forming Speed	10-15m/min
Effect Width	100-300mm
Thickness	1.5-3.0mm
Tolerance	±1mm
Roller Material	Gcr15, quench treatment hardness 55-58
Material of principal axis	High grade 45# forged steel
Shaft material	45# steel high-frequencies quench
Cutting system	Hydraulic cutting
Material for Blade	Cr12 mold steel with quenched treatment 60-62°C
Raw material	Galvanized Steel
Painted Color	Customers requirement

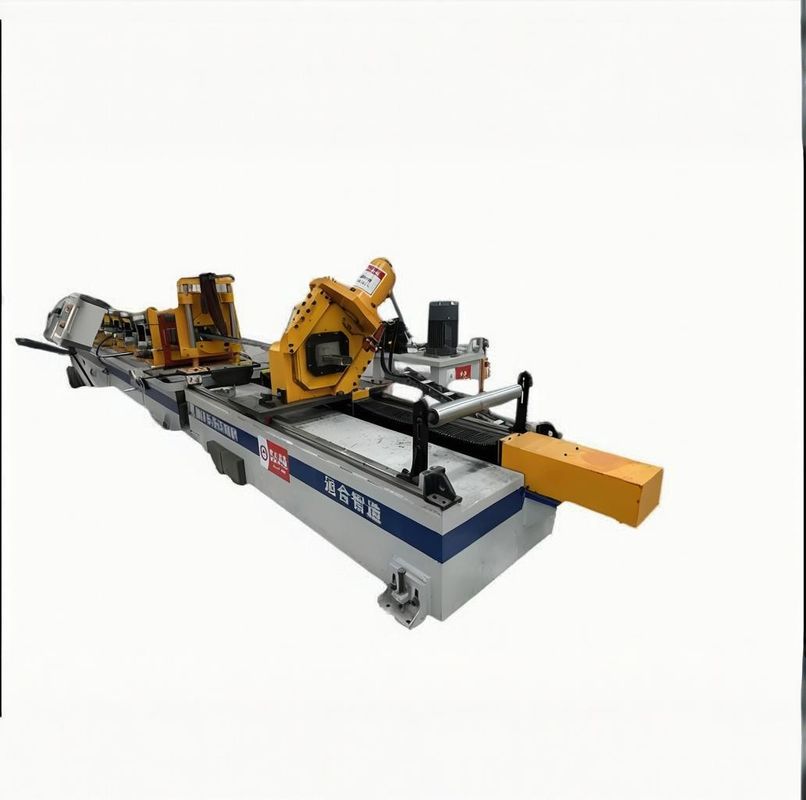

Product display:

3.2mm Building Material C Purlin Machine Steel Roll Forming Machine ISO9001 1

Packing shipping:

3.2mm Building Material C Purlin Machine Steel Roll Forming Machine ISO9001 2

3.2mm Building Material C Purlin Machine Steel Roll Forming Machine ISO9001 3

FAQ:

Q1. What are the main key points for selecting right machines?

A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price not the final point. Good quality is for long-term business cooperation.

Q2. Can you provide OEM service for roll forming machine?

A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production usage, machine speed, then machine specification will be some different.

Q3. What’s your standard trade terms ?

A3: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name for competitive ocean freight.

Q4. How about the quality control?

A4: Our company adopts 6S system to control every part with passed ISO9001:2000, CE,TUV/BV(.) Certificate.

Q5. How about the after-sale service?
A5: We provide 18 months free warranty and free technical support for the whole life of any machine. During warranty period, if parts still broken, we can send the new ones freely.
